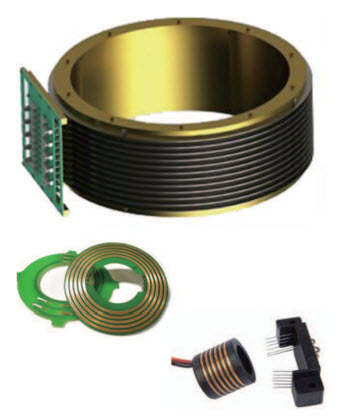

Split Type Slip Ring


Description of our Split Slip Ring:
  • Our split type slip rings fix the rotor and stator separately with least required installation space, capable transmit various LF (low frequency) signal and power current.
  • The center through hole can reach up above 1000mm.
  • Capable of high speed rotating.
  • According to the real application, the contact can accordingly use copper (silver) graphite, snap dome, alloy wire brush, and etc.
  • Flexible structure. The electric channel can adopt axial or radial superposition.
  • Flexible electric connection types as wires, connectors, copper bolts, and etc.
Features of our Split Slip Ring:
  • With compact structure, requiring least installation space.
  • Diverse structure and contact.
  • Flexible installation, easy and convenient for maintenance and replacement.
  • Maximum linear speed reaches up to 30m/s.
  • Excellent treatment of the interference problem between the signal ring and the power ring.
Typical Applications our Split Slip Ring:
  • Guidance system.
  • Detection system.
  • Harbour machines and equipment.
  • Large scale industrial equipment.
  • High speed automation equipment.
Customized Options:
  • Outline dimensions.
  • Installation size and installation mode.
  • Materials of housing.
  • Surface treatment.
  • Wiring as well as the specification of the wire and cable.
  • Experiment projects.

Manufacturer and Product Developer of Split Type Slip Rings which Fix the rotor and stator separately with least required installation space.

Parameters of our Split type Slip Ring:

Content

Standard

Options

Environmental Conditions

Enclosure

IP40

 /

Operating Temperature

-40+60

-60+60/0+150

Operating Humidity

95%

 /


We are in a good position to design electric slip rings to withstand the extreme conditions that are often encountered in outdoor and marine applications. From wind turbines and outdoor pan-tilt heads to marine cable reels and downhole inspection equipment, these harsh environment electric slip rings are durable and reliable enough for even the most demanding applications.

Our high-performance slip ring products are designed for use in a wide range of high-end OEM applications. We pride ourselves in our ability to provide the right precision solution for the right application. We produce a wide variety of electric motors and slip ring assemblies, including miniature capsule slip rings, through hole slip rings, RF slip rings, compound slip rings, split slip rings, large power slip rings, deep water slip rings, ethernet slip rings, and etc. Our substantial product offering enables us to address all slip ring applications. China TrueSci offers quick, cost-effective customization of our products to meet your unique specifications..
