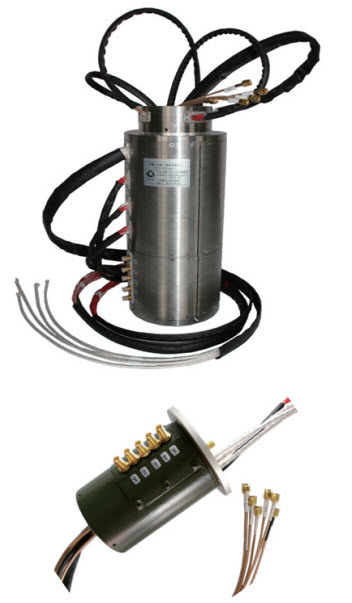

RF Slip Ring (Medium/High Frequency Slip Ring)


Description of our RF slip ring:
  • Our RF slip rings simulate coaxial cable structure, mainly used for transmission of MHF (medium/high frequency) signals, UHF (ultra high frequency) signals as well as electric power current and low frequency signals.
  • The through hole can be realized at the axis center.
  • All parameters of MHF and UHF pass accurate analysis and calculation to ensure the optimal comprehensive performance result.
  • Advanced sealing structure is adopted between the MHF/UHF signal channels with excellent insulation and shielding capability.
  • Superposition of electrical path along the axial direction, adopting gold to gold multi-points contact between with least resistance, reliable and endurable for long working life.
  • Capable of adapting to various environment such as high temperature, low temperature, impacting, vibration, salt spray, damp heat, water saturation, and etc.
Features of our RF slip ring:
  • Compact structure with least space between channels.
  • With RF interface connection, convenient for installation.
  • With least insertion loss and phase variation and highest insulation.
  • Strong anti-interference signal transmission with least loss.
  • Strong environment adaptation capability.
  • Can be integrated with current, low frequency, optical fiber, liquid (gas) rotary joints
  • Maintenance-free during working life.
Typical Applications of our RF slip ring:
  • Radar System.
  • High Definition Video Transmission.
  • Satellite Antenna.
Parameters of our RF slip ring:

Content

Standard

Options

Environmental Parameters

Enclosure

IP40

IP67

Operating Temperature

-40+60

-60+60 /0+150

Operating Humidity

95%

100%

MHF Parameters

Frequency Range

≤200MHz

≤500MHz

Insertion Loss

≤1.5dB

≤1.0dB

Isolation

≥50dB

≥70dB

Phase - WOW

≤5°

≤3°

VSWR

≤1.5

≤1.2

Central Through Bore

≤80mm

≤200mm

Mechanical Parameters

Rotary Rate

≤100rpm

≤300rpm

Life(*

≥8 million r

≥20 million r

*Depends on product application.

UHF Parameters

Content

single channel

binary channels

Frequency Range

DC26.5GHz

DC5GHz

Insertion Loss (Not include cable)

≤0.5dB

≤0.5dB

Isolation

/

≥50dB

Phase - WOW

≤0.5°

≤0.5°(CH1)/≤4°(CH2)

VSWR

≤1.2

≤1.2(CH1)/≤1.5(CH2)

Central Through Bore

No

No

UHF signal with optical signal at the same time, high signal cannot achieve

RF Slip Rings with advanced sealing structure for MHF, UHF signals transmission


We are in a good position to design electric slip rings to withstand the extreme conditions that are often encountered in outdoor and marine applications. From wind turbines and outdoor pan-tilt heads to marine cable reels and downhole inspection equipment, these harsh environment electric slip rings are durable and reliable enough for even the most demanding applications.

Our high-performance slip ring products are designed for use in a wide range of high-end OEM applications. We pride ourselves in our ability to provide the right precision solution for the right application. We produce a wide variety of electric motors and slip ring assemblies, including miniature capsule slip rings, through hole slip rings, RF slip rings, compound slip rings, split slip rings, large power slip rings, deep water slip rings, ethernet slip rings, and etc. Our substantial product offering enables us to address all slip ring applications. China TrueSci offers quick, cost-effective customization of our products to meet your unique specifications.
