China TrueSci is a professional enterprise integrated with R&D, manufacturing,
marketing and service in the field of slip rings. We focus on latest technologies and
develop practical & competitive products of slip rings to meet the
demand of military and civil applications worldwide. We design
and produce slip ring systems for precision,
durability and performance in hostile environments
like outer space and the ocean depths. We develop
slip rings for radar, tank, military airplane,
satellite, missile defense system and so on. As a
main supplier of slip rings for military projects,
we warmly
welcome customized project. By
manufacturing, designing and developing slip rings,
China TrueSci offer a large range of sophisticated
signal transfer systems transferring signals and
electrical power between static and rotating parts.
Military Slip Rings
The slip ring used in
military application is called military slip ring or
rotary joint. Military grade slip rings usually need
to be customized with precision, which is the main business
of China TrueSci. Our slip rings have been
successfully performing in aerospace, deep sea and
military applications. These products are developed
for extreme reliability, rugged environments and demanding requirements. They are engineered to withstand extreme temperatures, severe shock, constant vibration and a variety of other potentially destructive factors. Machine builders, engineers and end users around the world rely on
reliable quality slip rings when their livelihoods are on the line.
Along with the
improvement and development of advanced
technologies, the slip ring application for military
equipment has become wider and greater. Military
applications has quite strict
requirement for slip ring, especially for the
quality and stability. High Performance & Extreme Environments
are the basic requirements. China TrueSci is in a
good position to provide customized service of slip
rings for military project. China TrueSci works closely with the customer to meet the
strict challenge of requirement, often delivering an unprecedented level of efficiency, durability and precision.
Nowadays, people know
slip ring deeper and understand how important slip
ring is for so many machines and systems, including
the military applications. In the future, the
development of military equipment will be more
focused on the
automation feature. Military robotics, for example,
have rotating joint which must use slip ring to
solve the problem of flexibility and stability.
Generally speaking, the main applications of slip
rings for military purpose are radar, tank, military
airplane, satellite, missile defense system and so
on. For this kind of military field, we offer and
design slip rings to meet our customers'
demand for High Frequency Slip
Rings,
Fiber Optical Rotary Joints,
Customized Through Hole
Slip Rings, and etc. For a slip ring, we make a big difference in a smaller package. The military slip rings have
below features:
-
With higher level of protection
-
Require super precision and
accuracy
-
Able to withstand extreme
high or low working temperature
-
Multi-circuit, big current and high voltage
-
Shock and vibration resistant
-
Low electrical noise and high frequency range
-
Low signal transmission loss and high isolation
-
Compact structure, easy installation, very long
life time
Robotics Slip Rings
Because of complicated
rotary joint and inconvenient installation and
maintenance, robot adopts slip rings to realize 360
degree unlimited rotation and to transmit power and
signal combination. Industrial robots have become a
key factor for many manufacturer where automation is
so important. Robots reduce labor cost and provide increased productivity
and efficiency while maintaining high quality output.
And flexibility is added to the manufacturing process so that multiple tasks are accomplished
smoothly. For robotics slip ring, the
circuits could be up to 200 or more and can transfer
USB, Ethernet, RS, Canbus, encoder, thermocouple,
digital and analog signals. Robotics slip ring has
features of low work speed, longer life time and
free of maintenance. The slip rings are used for Robotics arms,
Pick and place,
Sensors,
Semiconductor, and wafer equipment
for robotics.
According to the
application environment of robotics, the adopted
slip rings can be divided into two parts: industrial
robot slip rings and special type robot slip rings.
Industrial robot has multi-joint or multiple degree
of freedom. Special type robot can be various
advanced ones that serve human in non-manufacturing
industry, including
service robot, underwater robot, military robot,
agriculture robot, entertainment robot and so on. We
can customize different designs of slip rings
according to your special and unique requirement.
We design slip ring with the key high performance characteristics to meet the robot's requirements.

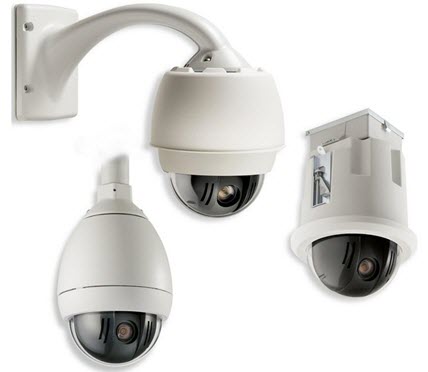

CCTV Slip Rings
Security industry has
increased gradually with the global market economy
development, while people are paying more attention
to security. At the same time, video surveillance
has achieved great development. Camera is
extensively used in many different places because of
its unique performance and function, such as
highway, railway, airport, port, square, station and
so on. Security cameras and CCTV cameras are
commonly required to turn 360 degrees continuously,
and generally, must be packaged into a compact
assembly. We design slip
rings to transmit signal and high definition signal
for cameras and CCTV cameras with compact size,
quiet operatio and low cost,
the channel number of which could be up to 12 and
the frequency can be achieved up to 50GHz, able to
transmit analog or digital signal to meet special
demand of customer.
Slip Rings for
Automation System
The slip ring belongs
to the mechanical industry. Automation technology is
now widely used in industry, agriculture, military,
scientific research, traffic transport, commerce,
medical service and so on. Slip ring is an
important rotating joint in mechanical automation
equipment. And the technology of slip ring has
become mature step by step. Carbon brush slip ring
design has now changed to gold to gold contact with
compact structure, easier for installation and more
convenient for maintenance.
With the continuous
innovation, slip ring has been widely used in

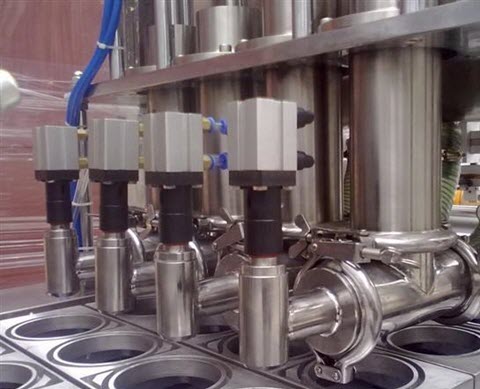

packing machine, printing equipment, intelligent
electrical equipment, mechanical equipment and so on.
Recommended product in
automation application---Capsule slip ring & Through
hole slip ring.
Features:
-
Compact design and structure
-
Signal and current combined transmission
-
Small
torque and low electrical noise
-
Smooth operation and longer life time
-
Easy installation and maintenance free
China TrueSci, as the
largest slip ring manufacturer in China, we design different slip ring structure to
meet every special demand in automation application
in this industry. We believe we have obligations and
ability to contribute our strength for global
mechanical automation industry.
Slip Rings for
Engineering Machinery
Slip ring has been
used extensively in the field of engineering
machinery application, playing a very important
rotating part in these equipment. Engineering
machinery can be divided into many different fields
such as crane, port machinery, excavator, marine
machinery, agricultural machinery, fire truck, tail
lift truck, and etc. The slip ring in crane
application is mainly installed on the center of
gyration, transferring power and signal together.
Normally, this kind of
slip ring has below features:
-
Big current and dimension
-
Compact structure and longer life time
-
High protection degree, high shock resistant and
low temperature for special environment
-
Easy installation and smooth operation
-
Metal housing and precious metal contact
materials
-
Power and signal combination
-
Maintenance free
Slip Rings for Medical
Equipment
A slip ring is an
electromechanical device that allows the
transmission of power and electrical signals from a
stationary to a rotating structure. Slip ring is
also called rotary electrical joint, collector or
electric swivel. A
slip ring can be used in any
electromechanical system that requires unrestrained,
intermittent or continuous rotation while
transmitting power and/or data/signal. Slip ring can
improve mechanical performance, simplify system
operation and eliminate damage-prone wires dangling
from movable joints.
The slip rings adopt
the advanced precious metal fiber brush wire
technology and unique shielding method to ensure
reliable signal, low working voltage, low abrasion,
and low loss contacting design, which exactly
realize longer life time and free maintenance. Slip
rings has been widely used on medical equipment,
such as shadowless lamp, CT machine and monitoring
machine.

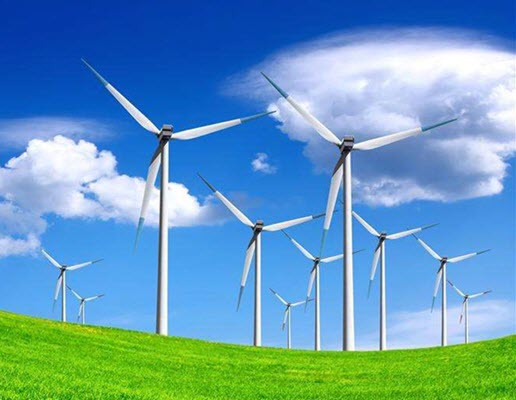

Slip rings for Energy
(Wind
Turbine Generator)
Today, wind is one of the fastest growing energy technologies. Wind power involves converting wind energy into electricity by using wind turbines. The slip ring can be part of a large wind turbine electric pitch control system with the option to integrate hydraulic pitch control systems if required. Modern wind turbines require delivery of power and signals to and from the rotating blades by a reliable rotary union assembly. Obviously the quality of the slip ring is a key determinant in the quality of the overall
wind turbine generation system.
Slip rings are mostly used to provide electrical signal and power for blade pitch power and control. In the hydraulic system, slip ring and fluid rotary union need to be combined to provide multiple signals, electric and hydraulic power transmission for the hydraulic blade pitch actuation. In the electric system, it need slip ring with higher power circuits transmit signals and electric power for the electric blade pitch actuation. High power slip ring is needed to provide high current transmission for energizing the rotor coils in the direct drive system.
Nowadays, around 10
percent of wind turbine slip ring in the market are
using fiber brush contact materials. This kind of
slip ring only need to be maintained rarely. Another
60 percent of slip ring in the market are made of
composite metal brush, normally combined with metal
and graphite, they require maintenance frequently. The remaining 30
percent wind turbine slip ring adopt single precious
metal brush, with better performance than above two
types. The main reason is that composite metal brush
design can wear brush in advance to avoid slip ring
attrition. But composite metal brush materials is
very sensitive to humidity. If Humidity is lower
than 15% or higher than 85%, it could lead to uneven
wearing. The other problem is that when it is used
for signal circuits, these composite metal brush
will occupy a great of space.
The slip rings for wind industry need to be designed to match harsh environment.
Usually they need to resist extreme high or low temperature, invasion of sand & dust and corrosion of seawater.
Marine Slip Ring
Marine application has extreme requirements of slip rings due to its harsh marine environment
and increasing transmission requirements. Marine slip rings are performing their function in underwater vehicles, marine satellite antenna systems, marine winches, sonar devices, seismic and oceanographic exploration equipments. Remotely operated vehicles (ROVs) and satellite communication systems as two important end-users of slip rings in marine application.

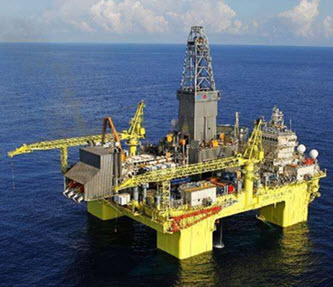

The growing use of underwater robots for deepwater oil and gas industry promotes the development of ROV slip ring systems. Slip rings used in deepwater must withstand extreme underwater environments such pressure and shock and corrosion. Satellite antenna communication system can automatically identify, acquire, and track satellite signals, it is essential for marine communication from the target to remote monitoring location. It contains three key elements—RF cable, RF connector and antenna. Antenna is the first element of the input system to wireless signal receiving system, because antenna system enables two way communications between the ground and another fast moving station, then people can track radar, airplane, boast and moving vehicles from monitoring station. As antenna system must be driven in 360° horizontal or vertical rotation, so it needs a slip ring to incorporate into the antenna system to solve voltage and signal control from one stationary part to rotor part.
Through Hole Slip Ring
Through bore slip
rings (also known as "through bore slip ring") are slip ring with through bore.
This series of slip rings are designed for being installed with flange on a sleeve bracket, also they totally meet with continuous transmission of power and/or signal under 360 degree unrestrained rotations. This kind of slipring use hollow shaft that applies the best advanced fiber brush technology and precious metal multi-contacting, low noise, low contact pressure and maintenance free.
China TrueSci Fine Works are ready here to meet your
demand for any through bore size, circuits, current according to
your special requirement in different applications.
Capsule Slip Ring
Capsule slip ring enjoys the main feature of compact design which could provide signal/power combination circuits ( Ethernet, USB, RS, Canbus, video, sensor, power, control, etc. ). From the dimension design, this kind of compact slip ring could be divided into miniature slip ring, super mini slip ring and mirco slip ring. The standard diameter of this series can be from 8.3mm-35mm, also it adopts advanced standard military degree surface processing technology to meet the demand of every customer. Gold to gold contact materials could make sure low electrical noise and longer work life time, especially suit for small and medium size equipment to transmit weak signal.
Ethernet Slip Ring
Ethernet slip ring is
specially designed for transmitting Ethernet signal,
which mainly used for high definition video motoring
system. The Gigabit Ethernet slip rings are designed as per international standards of Ethernet protocol, this kind of slip ring can be combined with multi-circuits for power and different signal at the same time.
The transmission frequency could be up to 250MHz, also transmission rate can reach 1Gbps.
China TrueSci industrial slip rings provide the solution to transmit electric power and electrical signals from stationary to rotating units in all types of machines like

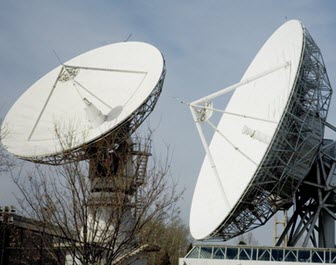

radar system, antenna dishes, revolving cranes, rotating purifiers in sewage or water treatment facilities, carrousels, manipulators,

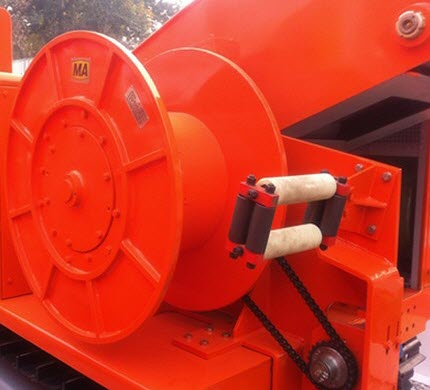

packing machines, theatre stages, wind turbines as well as in cable reels.
Our fully developed and versatile standard program facilitates to assemble slip ring assemblies with any number of poles. Current ratings up to 1200 A and voltages up to 24 kV are possible. The range in size for the slip ring assemblies starts with 30 mm up to 360 mm diameter and lined up to 100-poles.
China TrueSci had
developed to be a leading designer, manufacturer, and integrator of precision slip rings assembly products in China.
Our high-performance slip rings are used widely in
radar system, military weapons, robotics, industrial machinery, wind energy, marine applications, and medical equipment worldwide.
We committed ourselves to the development, designing, manufacturing and marketing of high quality, extremely reliable and competitive cost precision slip
rings for a large variety of applications. Our high-performance
slip rings are designed for use in a wide range of high-end OEM applications. We pride ourselves in our ability to provide the right solution for the right application
of slip rings.
If you have specific customized requirement, please
feel free to consult us so that our sales engineer
could recommend the most suitable product to you for
you reference.
|
|
