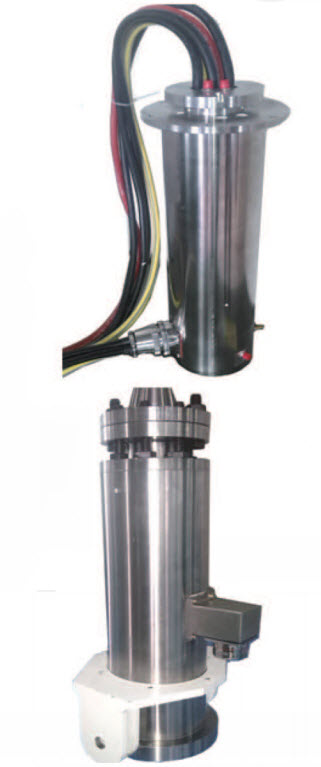

High Sky Type Slip Ring (for Aerostat/Aircraft)


Description:
  • Our high sky slip rings are designed to transmit various power currents, electrical signals and optical signals between the stationary and rotating platforms from earth environment to high sky environment.
  • The model I can be designed to undertake very high tensile strength according to the demand of the real application.
  • Withstanding high surge voltage caused by thunder and lightening and capable of conducting high current.
  • Small size and light weight.
  • Reliable for power transfer with high voltage and high current.
  • Capable of adapting to various environment such as typhoon, storms, heavy rains, and etc.
Features:
  • Compact size and light weight.
  • Reliable endurance of heavy weight and high voltage.
  • Gold to gold multi-point contact with least friction coefficient, contact resistance and resistance fluctuation to work for a long life.
  • Altitude up to 21000meters.
Typical Applications:
  • Aerostats.
  • Aerospace Communication Systems
Parameters:

Item

Parameter

Altitude

up to 21000m

Enclosure

IP67

Rotating Rate

100rpm

Axial tension

500KN

Current under High Voltage

10A@5000V

Current under Low Voltage 1000A@380VAC

Electric Signal types

GbE or MbE Ethernet, LF Signal

Optical Signal types

4 Channels, 650~1550nm

Surge Withstanding Voltage

100KV

Surge Withstanding Current

200KA,200C

High Quality High Sky Slip Rings for Aerostats and Aerospace Communication Systems produced by China factory



Slip rings ensure engineering and design teams no longer require timely – and often costly – workarounds in order to power rotating devices, whether they be motors, military devices or rotating electrical assemblies. Playing a major role in improving mechanical performance, as well as simplifying operations, they have further further eliminated the threat of damaged and hazardous wiring and cable connections in moving joints.

Our high-performance slip rings are designed for use in a wide range of high-end OEM applications. We pride ourselves in our ability to provide the right solution for the right application of slip rings. Our high-performance slip rings are designed for use in a wide range of high-end OEM applications. We pride ourselves in our ability to provide the right solution for the right application of slip rings. We develop, manufacture and market electrical slip rings for power and signal transmission, rotary unions/joints, hybrid rotary transmissions units, fiber optic rotary joints (forj), rotary / linear encoders and RF rotary joints with the collaboration of our partners technologies of industrial applications. Our goal is to match customers requirement of slip rings through high quality products, competitive prices and prompt reliable services. To be a leading company in the field of slip rings, our aim is to fulfill our offers on exact time and perfect quality, by satisfying our customer's demand of slip ring efficiently.

Slip rings handle either power, data or both across a number of rings on which a spring or other loaded contact finger, ring or brush is held in place to pass power as the rings rotate. Power levels range from milliwatts to hundreds of kilowatts dependent on application.
